FC UPC 3mm Fiber Optic Jumper Cable Simplex Mode FTTH System Connections
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode Type | Snglemode/Multimode | Outer Jacket | PVC/LSZH/OFNP/OFNR |
|---|---|---|---|
| Color | Orange/Yellow/ Blue/Aqua For Choice | Cable Diameter | 0.9mm/2.0mm/3.0mm Cable |
| Connector Type | FC | Application | FTTH System Connections To CATV Telecommunication Networks |
| Ferrule End -face | UPC | Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| High Light | FC UPC 3mm fiber optic cable,fiber optic jumper cable Simplex Mode,FC UPC fiber optic jumper cable |
||
Product Description

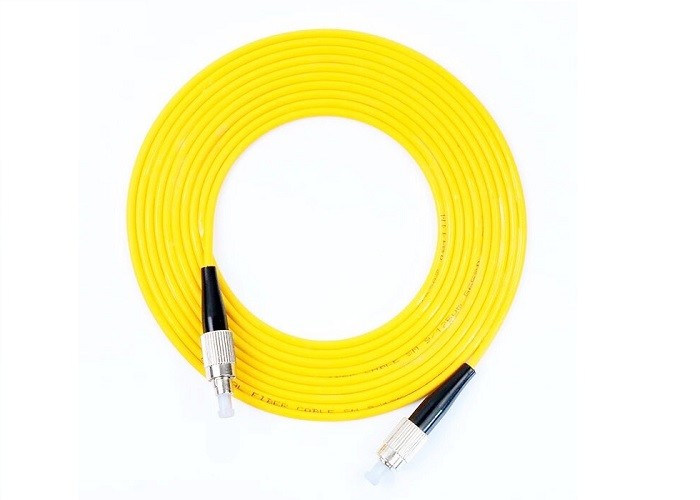

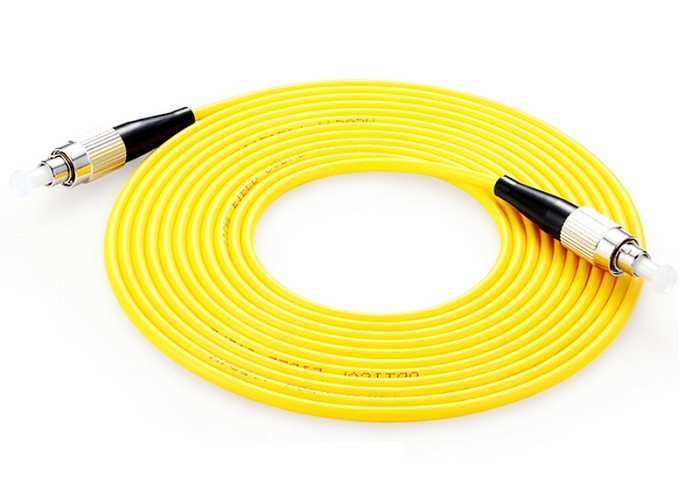

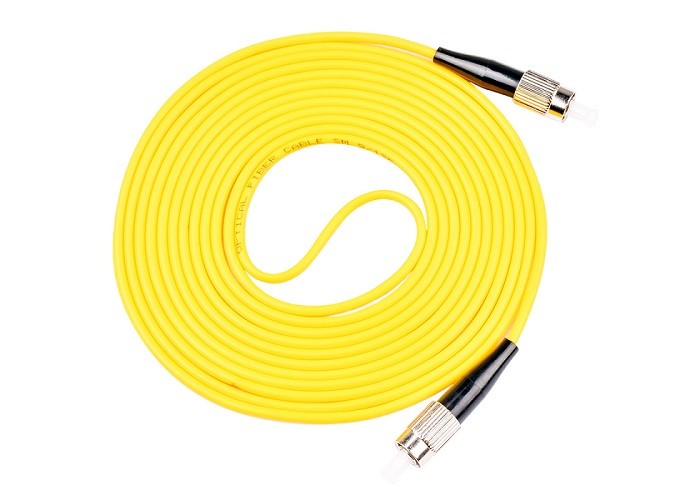

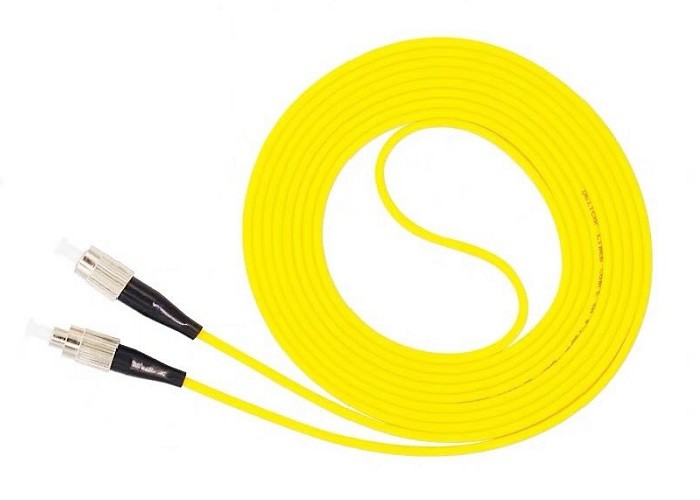

3.0mm FC UPC-FC UPC Simplex Mode FTTH Fiber Jumper Cable Fiber Optic Patch Cord
Description:
3.0mm FC UPC-FC UPC Simplex Mode FTTH Fiber Jumper Cable Fiber Optic Patch Cord, also known as 3.0mm FC UPC-FC UPC Simplex Mode FTTH Fiber Jumper Cable Fiber Optic connector. refers to that connector plugs are installed at both ends of the optical cable to realize the active connection of the optical path; One end with a plug is called a pigtail. Optical fiber patch cord / cable is similar to coaxial cable, except that there is no mesh shielding layer. The center is a glass core for light propagation. In multimode fiber, the diameter of the core is 50 μ m~65 μ m. The diameter of the single-mode fiber core is 8 μ m~10 μ m. The core is surrounded by a glass envelope with a lower refractive index than the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.
A patch cord can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. And it can be combinated any items, including angled (angle polish) SCA, MUA, STA, LCA, MPO Angled.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
3.Application
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
7. Defense combat readiness
8. Telecommunication networks
9. Fiber optic communication networks
10. CATV, LAN, MAN, WAN, Test &Measurement
Features:
1. Low Insertion loss
2. High return loss
3. Good Repeatability
4. Good Interchange
5. Excellent Environmental Adaptability
6. SM & MM available
7. Standard & custom configurations
8. Meets Telecordia-GR-326-CORE specifications
9. Low insertion loss
10. Ultra low back reflection
