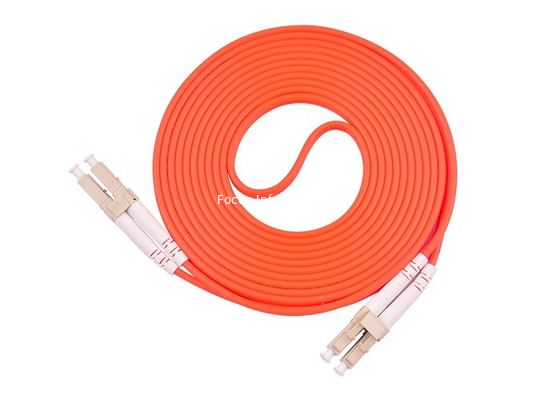

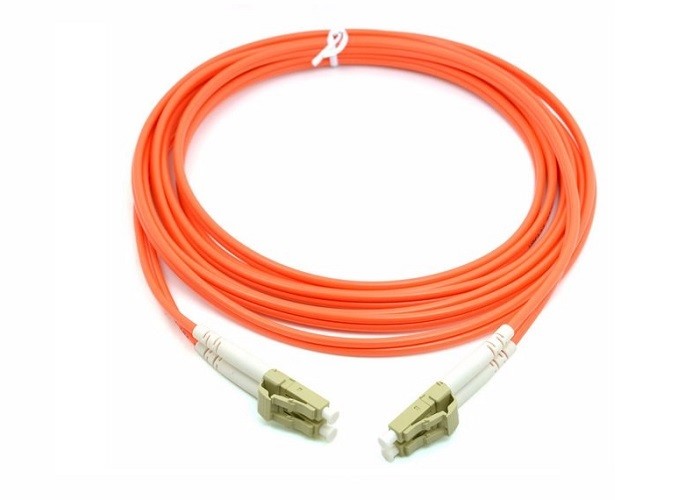

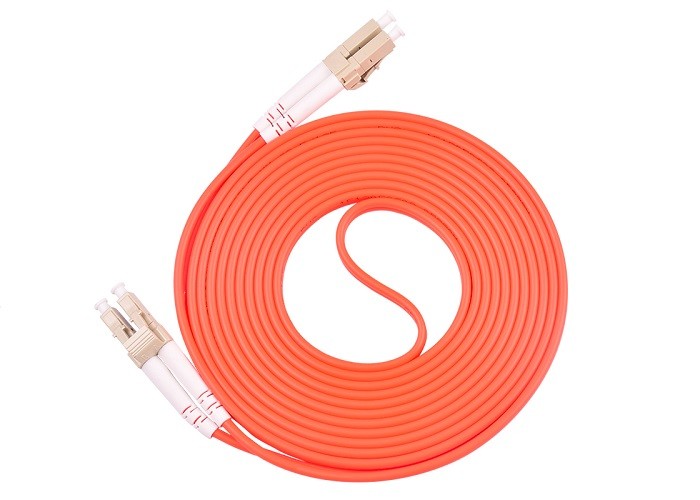

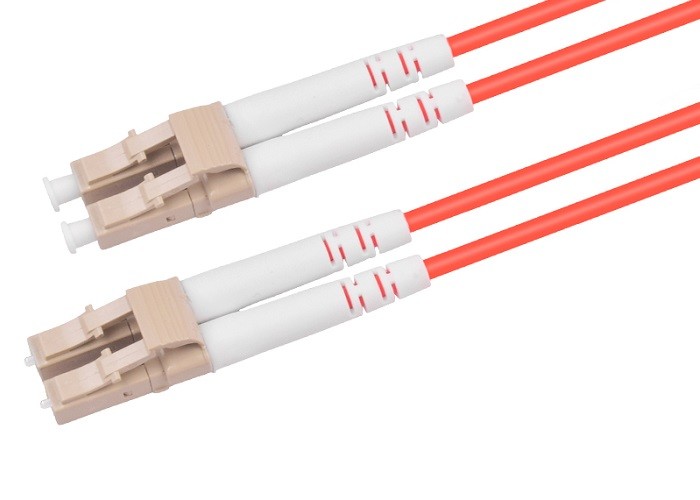

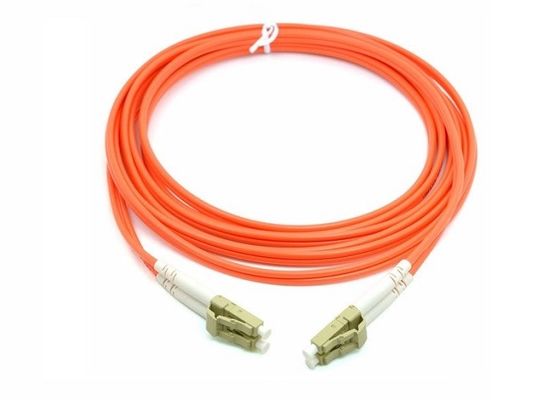

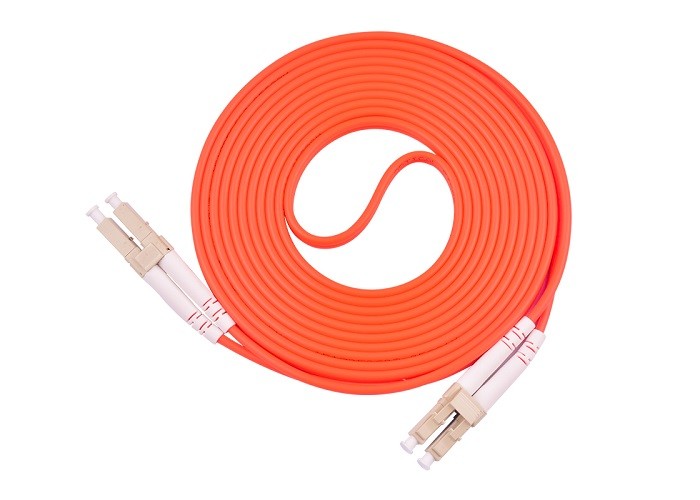

LC UPC Multimode Duplex Fiber Optic Patch Cords RoHS ISO9001
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode Type | Snglemode/Multimode | Outer Jacket | PVC/LSZH/OFNP/OFNR |
|---|---|---|---|
| Color | Orange/Yellow/ Blue/Aqua | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Core | Duplex | Connector Type | LC |
| Certification | ISO9001/RoHS | Application | FTTH System Connections To CATV Telecommunication Networks |
| Ferrule End -face | UPC | Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| High Light | multimode duplex Fiber Optic Patch Cords,multimode duplex fiber optic cable RoHS,multimode duplex fiber optic cable ISO9001 |
||
Product Description
Duplex Multimode for Telecommunication tools 2.0 or 3.0mm LSZH LC UPC to LC UPC Optical Fiber Patch Cord
Description:
A patch cord can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. And it can be combinated any items, including angled (angle polish) SCA, MUA, STA, LCA, MPO Angled.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
Applications
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
Features:
1. Low Insertion loss
2. High return loss
3. Good Repeatability
4. Good Interchange
5. Excellent Environmental Adaptability
6. SM & MM available
7. Standard & custom configurations
8. Meets Telecordia-GR-326-CORE specifications
9. Low insertion loss
10. Ultra low back reflection
