Orange FTTH LC To LC Fiber Jumper Cable Duplex 0.9mm 2mm 3mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode Type | Snglemode Duplex | Outer Jacket | PVC/LSZH/OFNP/OFNR |
|---|---|---|---|
| Color | Yellow/ Orange | Cable Diameter | 0.9mm/2.0mm/3.0mm Cable |
| Connector Type | LC SC ST FC MU MPO | Application | FTTH System Connections To CATV Telecommunication Networks |
| Cable | Simplex, Duplex,6fiber,12fiber,24fiber,48fiber | Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| High Light | orange lc to lc fiber jumper,lc to lc fiber jumper 0.9mm 2mm,ftth fiber optic cable Duplex |
||
Product Description

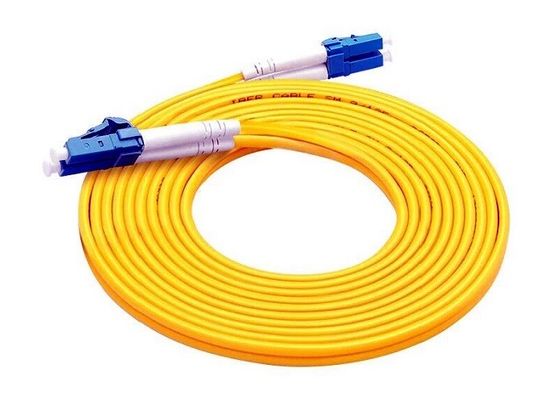

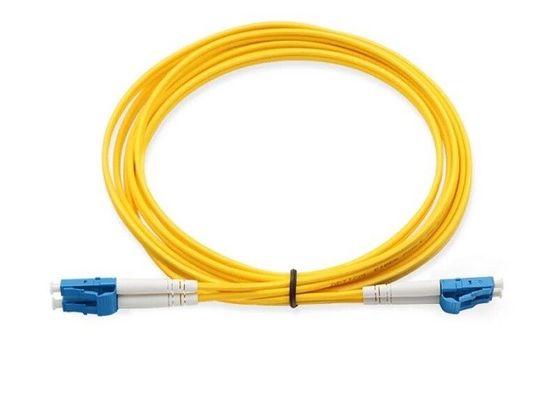

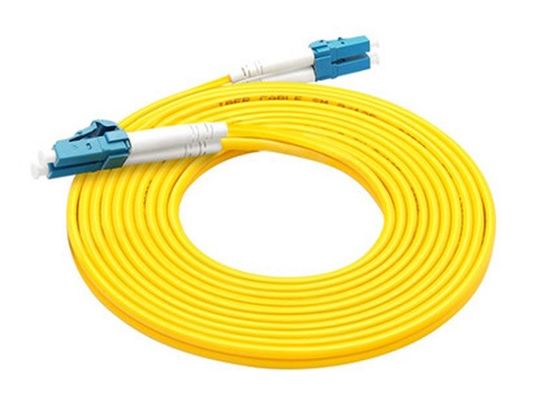

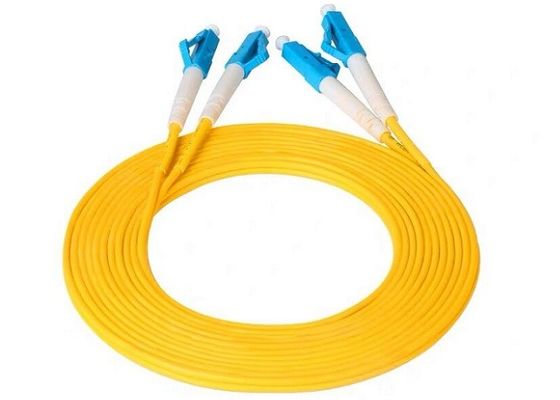

FTTH Jumper Cable for Network SM Duplex Single Mode LC to LC Fiber Patch Cord
Description:
FTTH Jumper Cable for Network SM Duplex Single Mode LC to LC Fiber Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.
There are many kinds of optical fiber jumpers (also known as optical fiber connectors), that is, optical fiber connectors connected to optical modules, and they cannot be used with each other. SFP module is connected to LC optical fiber connector, while GBIC is connected to SC optical fiber connector. LC type optical fiber jumper: connector connecting SFP module, which is made of modular jack (RJ) latch mechanism with convenient operation.
LC-LC Fiber Optic Cable body is made of PVC/ LSZH plastic materials, which is shiny, tough, environmental protection, not fade,not broken and not easily deformed. The inside optical cable is aramid, which is tough, tensile, non-toxic, fire retardant, core protection and low smoke. The connector is PBT plastic materials and fine copper, which is firm, durable, environmentalprotection, high temperature resistant, not fade, not broken and not easily deformed.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
3.Application
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
