SC UPC 58MM FTTH Fiber Optic Fast Connectors Single Mode 30N
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 58MM SC UPC Single-Mode FTTH Tool Cold Connector Fiber Optic Fast Connnector | Model Number | SC/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.2dB | Type | Singlemode |
| Suit Cable Diameter | 0.9/2.0/3.0mm | Application | FTTH FTTB FTTX Network |
| Tensile Strength | 30N | Use | Data Center |
| High Light | Singlemode Fiber Optic Fast Connectors,SC UPC FTTH Fast Connectors,30N Fiber Optic Fast Connectors |
||
Product Description

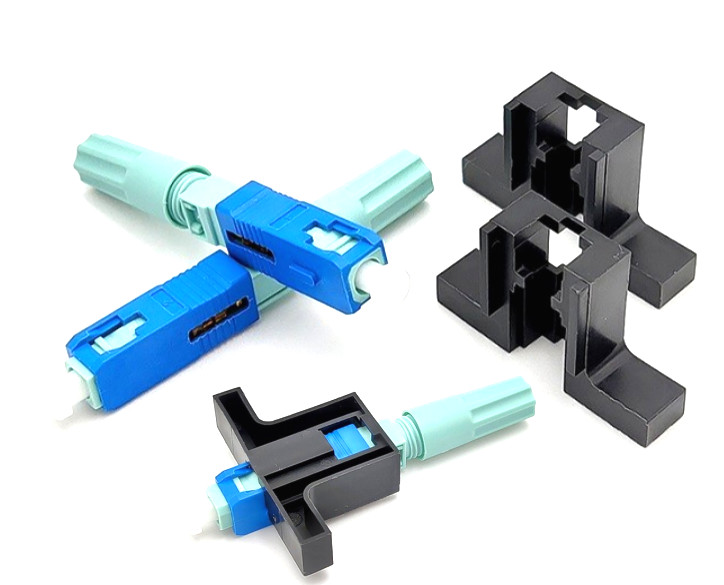

58MM SC UPC Single-Mode FTTH Tool Cold Connector Fiber Optic Fast Connnector
Description
58MM SC UPC Single Mode FTTH Tool Cold Connector, also known as Field Termination Fiber Optic Connector or Quick Connector, is an innovative fiber optic connector designed for quick and easy installation. The connector eliminates the need for epoxy and polishing, making it efficient and convenient.
This connector features a unique design with a patented mechanical body that contains a factory-installed fiber tip and a pre-polished ceramic ferrule. This design allows on-site assembly, increases the flexibility of optical cabling designs, and significantly reduces the time required for fiber termination.
The Quick Connector range is popular as a reliable solution for optical cabling in buildings, floors and various applications such as LAN (Local Area Network), CCTV (Closed Circuit Television) and FTTH (Fiber To The Home).
By using this field-installable fiber optic connector, installers can more quickly and easily achieve fiber termination without complex and time-consuming traditional methods involving epoxy and polishing. This improves efficiency, reduces installation time, and enhances the flexibility of optical network deployments.
Application: FTTx Rebuilding the wiring in optical equipments rooms
Following types of connector is available: SC/PC,FC/PC
Feature:
- Quick and Effortless Termination: Our connectors provide fast and easy termination for rectangular section FTTH drop cables. The process is streamlined and efficient, saving time and effort during installation.
- No Polishing or Adhesives Required: With our connectors, there's no need for time-consuming polishing or messy adhesives. The termination process is simplified, ensuring a hassle-free experience.
- Exact Cable Length Termination: Our connectors allow for precise termination to the exact required length. This ensures a neat and customized installation, tailored to your specific needs.
- Re-Opening Capability: Our connectors can be re-opened up to five times, allowing for adjustments or repairs if needed. This flexibility adds convenience and ensures future modifications can be easily made.
- Simple Assembly with Guide Rail Tool: Our connectors are designed to be easily assembled using a guide rail tool. This tool simplifies the process and ensures accurate and secure connections.
- Compatible with Various Drop Cable Sizes: Our connectors are suitable for use with 2.0mm × 3.0mm and 2.0mm × 1.6mm drop cables. This versatility allows for flexibility in accommodating different cable sizes.
- Easy Operation, High Success Rate, Longevity, and Low Maintenance: Our connectors are user-friendly, ensuring easy operation and a high success rate during installation. They are built to withstand long-term use, requiring minimal maintenance over time.
