SC APC SM Single Mode Fiber Optic Adapters Kit Anti Oxidize High Temperature Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Green SC APC Single Mode Simplex Fiber Optic Coupler Fiber Optical Adaptor | OEM | Brand |
|---|---|---|---|
| Model Number | SM (Single Mode) | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | Yes |
| Flange | Yes | Application | Fiber Connection |
| High Light | Fiber Optic Adapters anti oxidize,Single Mode Adapter SC APC,SM fiber optic adapter kit |
||
Product Description

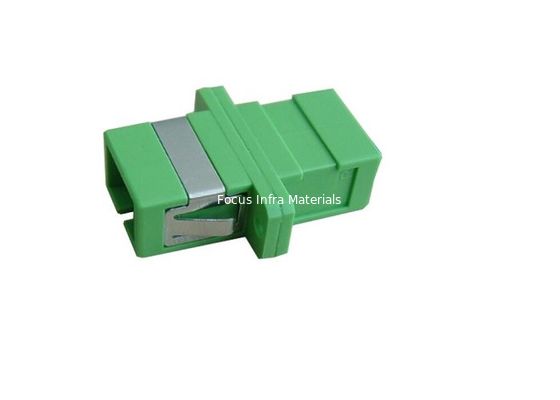

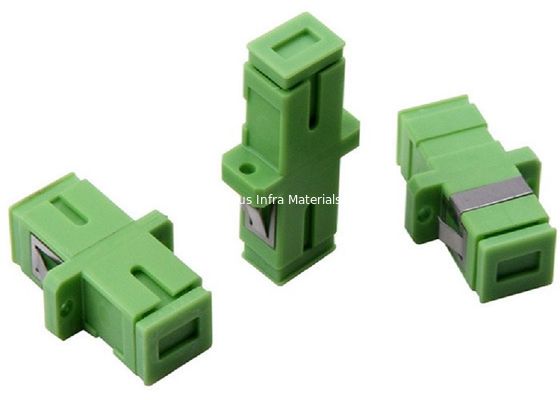

Green SC APC Single Mode Simplex Fiber Optic Coupler Fiber Optical Adaptor
Description:
Focus Infra’s Green SC APC Single Mode Simplex Fiber Optic Coupler Fiber Optical Adaptor is designed for Single Mode Cable Connection. The optical fibers are connected by the Fiber Optic Coupler through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.
According to the different fiber optic connectors, the Fiber Optic Coupler can provide the corresponding adapter parts for the fiber optic connector. SC type Fiber Optic Coupler means Standard Connector. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
