Focus Infra FTTX FTTH Fiber Optic Adapters SC UPC High Precision
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SM Single Mode Simplex Mode SC PC Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode, SM | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | FTTH Fiber Optic Adapters,adapter sc upc High precision,FTTX adapter sc upc |
||
Product Description

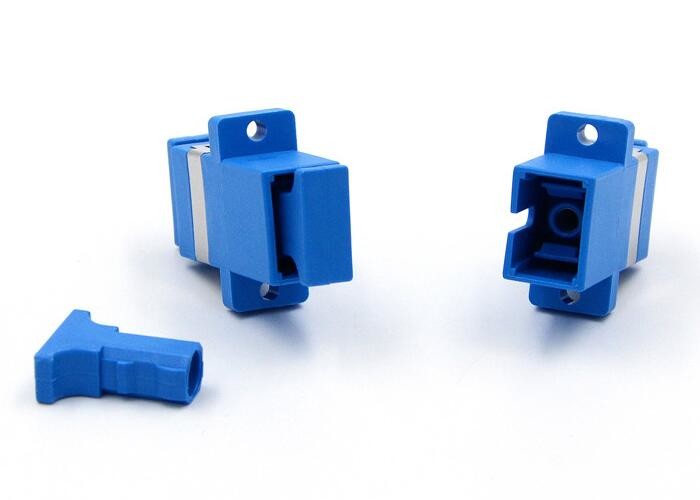

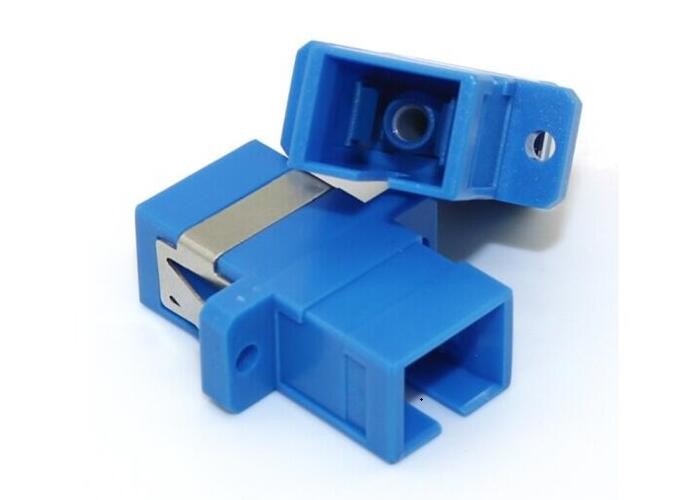

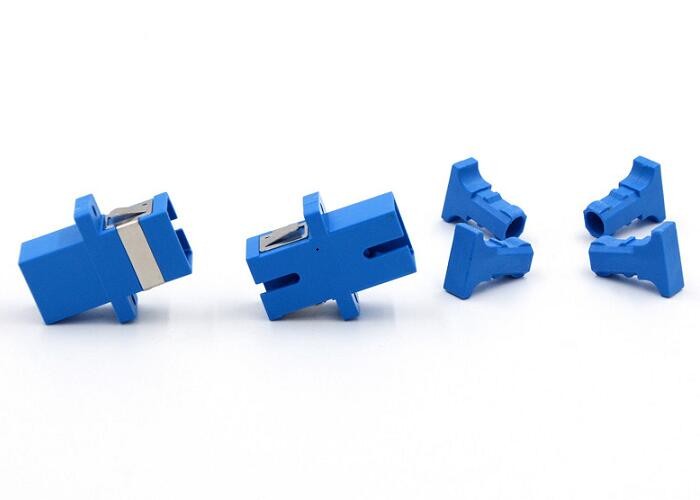

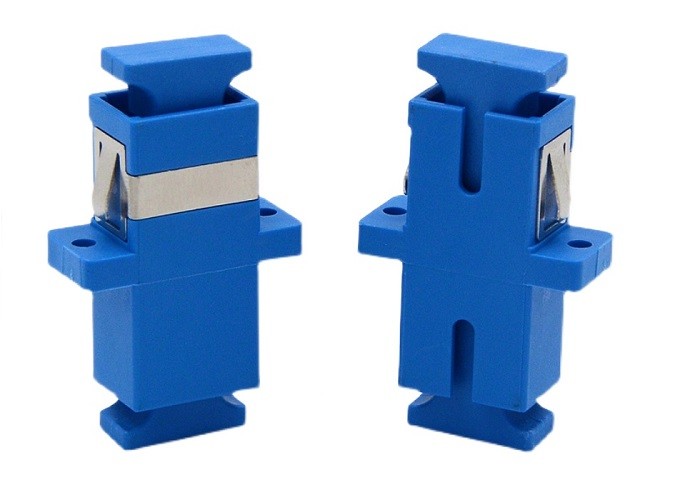

SM Single Mode Simplex Mode SC PC Fiber Optic Adapter
Description:
SM Single Mode Simplex Mode SC PC Fiber Optic Adapter are designed for mounting in standard rectangular cut out style panels. Focus Infra also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.
Single mode SC/APC Duplex Fiber Optic Adapters are designed for mounting in standard rectangular cut out style panels. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements. Focus Infra’s SM Single Mode Simplex Mode SC PC Fiber Optic Adapter is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
Features:
Compact design
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount styles & flange options
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
