Simplex Single Mode SC PC Fiber Optic Adapters Tensility Resist 600g
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC PC Simplex With Flanges Single Mode Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode, SM | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | SC PC Fiber Optic Adapters,Simplex single mode adapter,SC PC single mode adapter |
||
Product Description

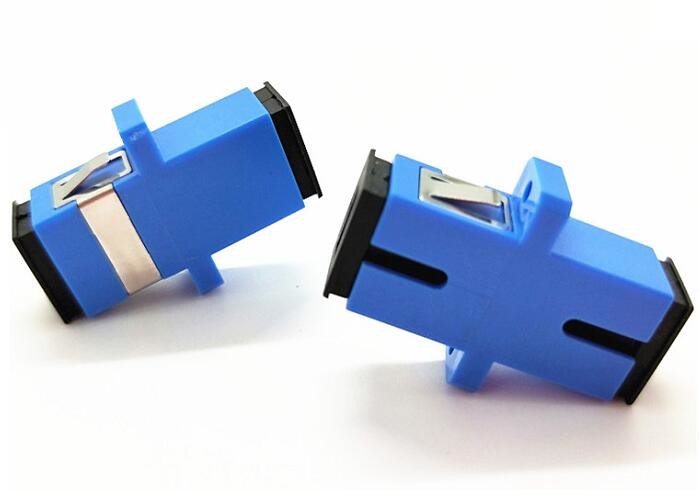

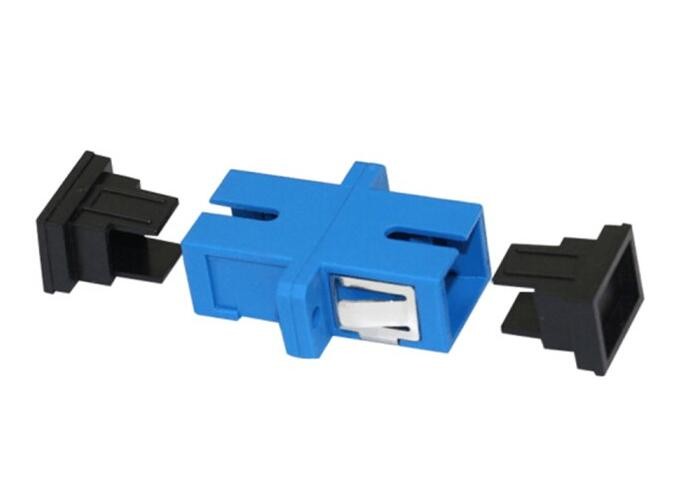

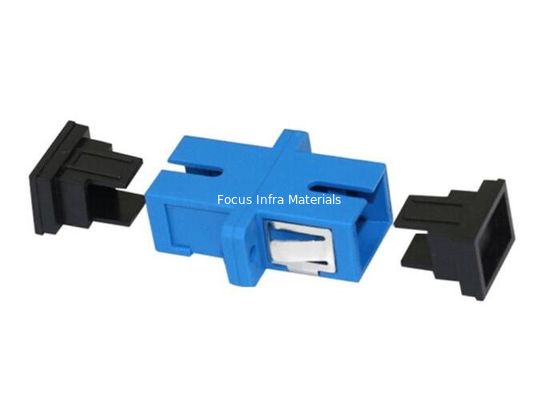

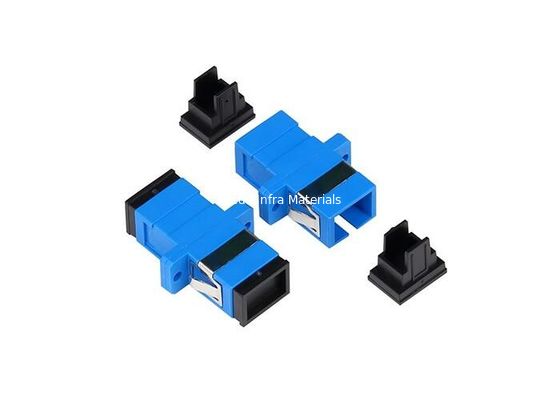

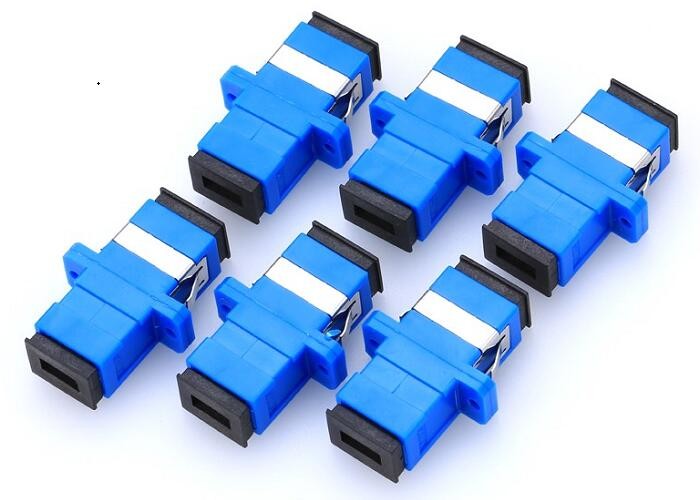

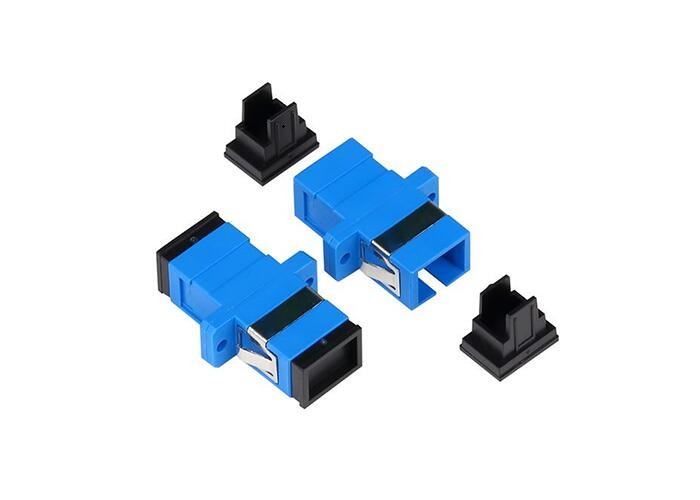

SC PC Simplex With Flanges Single Mode Fiber Optic Adapter
Description:
SC type shell is rectangular, and the structural dimensions of the pins and coupling sleeves used are exactly the same as those of the FC type. The optical fiber connector is a device for detachable (movable) connection between an optical fiber and an optical fiber. To a certain extent, the optical fiber connector also affects the reliability and performance of the optical transmission system. According to the different fiber optic connectors, the fiber optic adapter can provide the corresponding adapter parts for the fiber optic connector.
Applications:
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Premise installation
8. Test equipment
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
