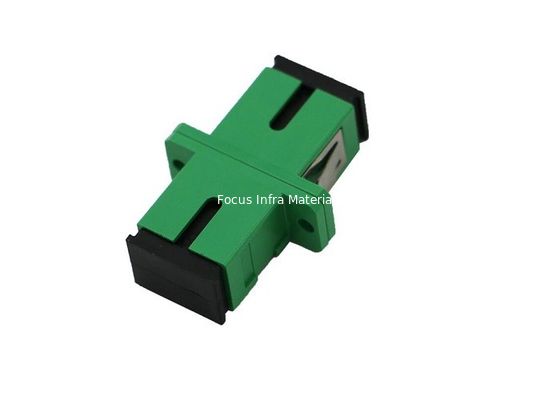

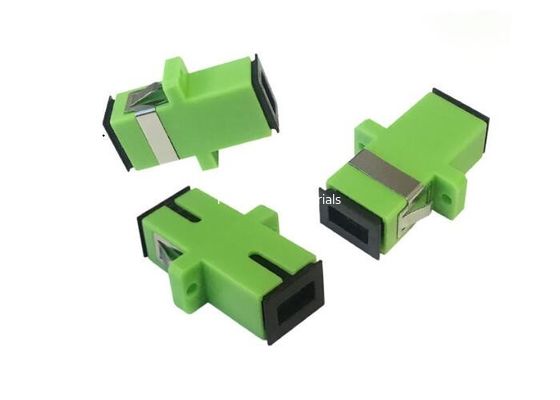

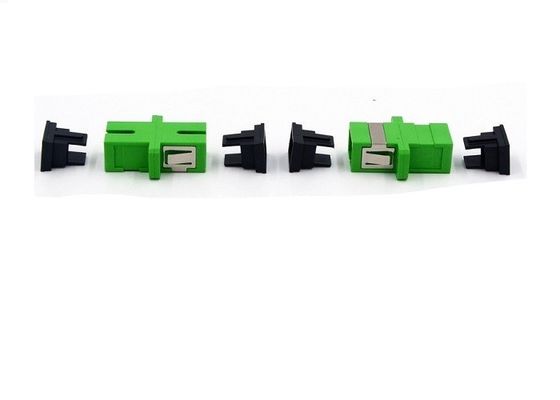

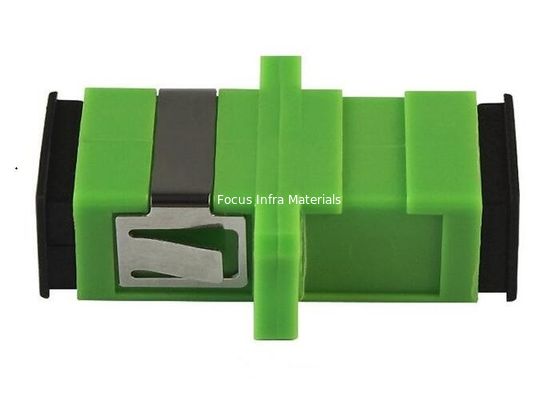

SC APC SX SM Green Color with Metal Clips with Flange Fiber Optic Adapter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX SM Green Color With Metal Clips With Flange Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | SM (Single Mode) | Use | FTTH, FTTX, FTTA, CATV |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
Product Description
SC APC SX SM Green Color with Metal Clips with Flange Fiber Optic Adapter
Description:
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal flanges to facilitate the installation and fixation of the connectors.
Focus Infra is supplying a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
